Description

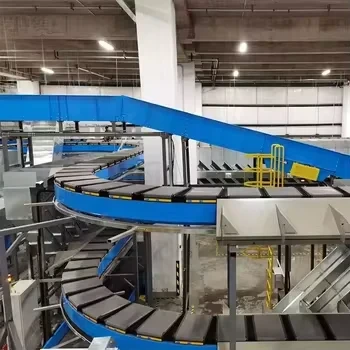

Cross belt sorter TR400-1100
High-Capacity Linear Motor Sorting System with 1100mm Wide Chutes for Gentle Handling.
As the core equipment in advanced sorting systems, the Cross Belt Sorter is designed to deliver maximum efficiency, flexibility, and scalability for modern logistics operations.
It plays a central role in integrated sorting solutions, working seamlessly with upstream systems such as singulation, weighing, and scanning, and downstream systems including chutes, conveyors, and dispatch lines.
Share to :
| Item | Reference Specification |
|---|---|
| Theoretical Design Capacity | 6,000–7,000 parcels/hour |
| Typical Design Target | 5,000 parcels/hour |
| Drive Technology | 3.7 kW permanent magnet linear motor system |
| Sorting Characteristic | Active cross-belt for gentle parcel handling |
| Conveyor Drive | 2.2 kW servo motor |
| Operating Speed | 1.0–1.5 m/s |
| Carrier Pitch | 400 mm |
| Chute Width | 1,100 mm |
| Barcode Scanning | Omnidirectional 6-side scanning |
| Parcel Size (Min) | 100 × 100 × 10 mm |
| Parcel Size (Max) | 500 × 400 × 400 mm |
| Parcel Weight Range | 0.03–30 kg |
Reference configuration: Values shown are preliminary design targets. Final throughput, motor configuration, scanning setup, destination count and parcel limits are confirmed after reviewing the parcel profile, facility layout, operating workflow and software interfaces.
Custom Throughput Engineering
For projects targeting up to 20,000 parcels/hour, TrueLiSort can engineer the required sorting modules, chute layout, control logic and conveying system. Final capacity is confirmed after reviewing the parcel profile, destination count and operating conditions.
Superior Gentle Parcel Handling
The active cross-belt ensures zero-impact discharge, protecting fragile electronic and luxury goods.
1100mm Wide Chutes
Wider discharge areas accommodate a larger variety of parcel types and improve collection efficiency.
Low Maintenance
Proven stable performance reduces downtime and maintenance costs.
Wide Parcel Compatibility
1.Min: 100 × 100 × 10 mm
2.Max: 500 × 400 × 400 mm
3.Weight: 0.03 – 30 kg
Perfect for small and irregular parcels
Flexible Configuration
Reference carrier pitch: 400 mm
Reference chute width: 1,100 mm
Operating speed: 1.0–1.5 m/s
Final configuration is adapted to the project layout and parcel profile.
Energy-Efficient Linear Motor Drive
Reference drive configuration: 3.7 kW permanent magnet linear motor with controlled speed after commissioning. Motor sizing, carrier count and energy performance are confirmed for the final layout and operating load.
Why Choose Our Linear Motor Cross Belt Sorting System?
Proven experience in logistics automation
Customized solutions based on your layout
Stable performance in real applications
Complete support: design, production, installation
Fast response for global customers
Customization Service
We can design a set of logistics transportation sorting system for you tailored to your specific facility dimensions and throughput requirements.
Customer Design Drawings
See Cross Belt Sorter in Action
Watch how the system achieves high-speed and high-accuracy parcel sorting in real projects.
Used for sorting parcels by destination, route, or delivery zone.
We’ve compiled answers to some of the most frequently asked questions about selecting, installing and maintaining these systems in a warehouse or distribution center.
This reference configuration uses omnidirectional 6-side barcode scanning for parcel identification. The final scanner arrangement and code-reading requirements are confirmed based on label position, conveyor speed, parcel size and software interface.
Yes, the core value of our cross belt technology is gentle parcel handling. By avoiding the "shoving" motion of mechanical sorters, it ensures fragile items are sorted safely even at peak speeds.
Cross belt is better for precision and small parcels, while narrow belt is better for higher speed and larger items.
