Custom Parcel Sorting Systems. Engineered for Real Operations.
Custom Parcel Sorting Systems. Engineered for Real Operations.

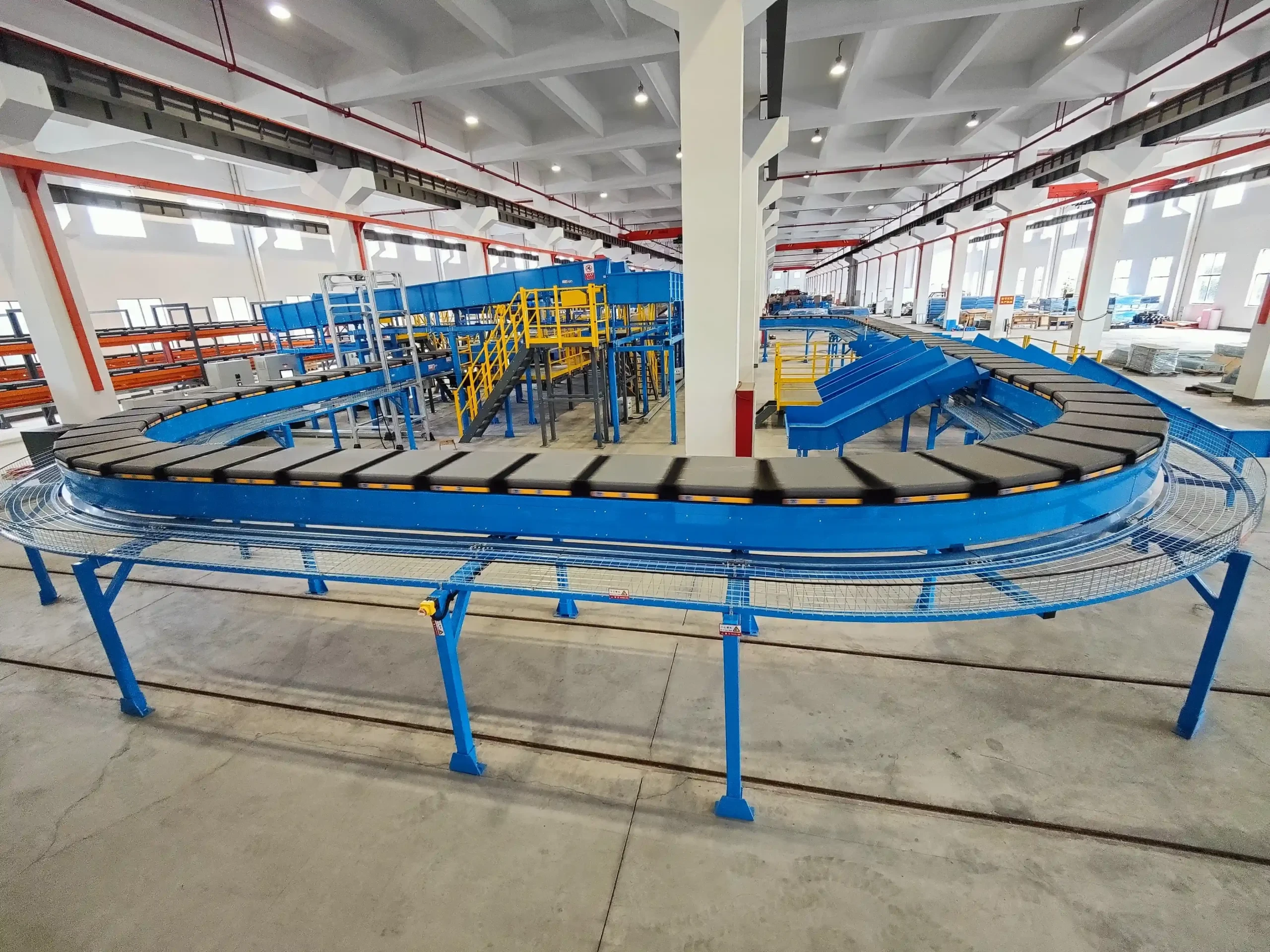

The Cross Belt Sorter is a high-performance automated sorting system designed for large-scale logistics hubs, e-commerce fulfillment centers, and parcel distribution facilities. It enables fast, accurate, and gentle handling of a wide range of items, making it one of the most advanced sorting solutions in modern intralogistics.
Each carrier is equipped with an independent belt, allowing precise and flexible parcel discharge to multiple destinations, even at high speeds.
Share to :
| Item | Technical Specification |
|---|---|
| Sorting Capacity (theoretical) | 6,000 – 7,000 parcels/hour |
| Sorting Capacity (average) | 5,000 parcels/hour |
| Drive Technology | 3.7kW Permanent Magnet Linear Motor Sorting System |
| Sorting Characteristic | Active cross-belt for gentle parcel handling |
| Conveyor Drive | 2.2kW Servo Motor |
| Operating Speed | 1.0 – 1.5 m/s |
| Carrier Pitch | 400 mm |
| Chute Width | 700 mm |
| Barcode Scanning | Omnidirectional 6-side scanning |
| Parcel Size (Min) | 100 × 100 × 10 mm |
| Parcel Size (Max) | 500 × 400 × 400 mm |
| Parcel Weight Range | 0.03 – 30 kg |
Omnidirectional identification for zero manual alignment.
1750mm width accommodates large parcels up to 1200mm.
2.2kW Servo motor drive for 24/7 stable operation
Proven stable performance reduces downtime and maintenance costs.
1.Min: 100 × 100 × 10 mm
2.Max: 500 × 400 × 400 mm
3.Weight: 0.03 – 30 kg
Perfect for small and irregular parcels
1.Carrier pitch: 400 mm / 500 mm
2.Chute width: 700 mm / 1100 mm
3.Speed: 1.0 – 1.5 m/s
Adaptable to different layouts
1.3.7kW permanent magnet synchronous linear motor
2.One motor drives 60–70 carriers
3.Energy saving >40%
4.Constant speed after commissioning
Lower operating cost and energy consumption
Proven experience in logistics automation
Customized solutions based on your layout
Stable performance in real applications
Complete support: design, production, installation
Fast response for global customers
We can design a set of logistics transportation sorting system for you tailored to your specific facility dimensions and throughput requirements.
Watch how the system achieves high-speed and high-accuracy parcel sorting in real projects.
Used for sorting parcels by destination, route, or delivery zone.
We’ve compiled answers to some of the most frequently asked questions about selecting, installing and maintaining these systems in a warehouse or distribution center.
It ensures that barcodes are captured from any angle during high-speed operation. This minimizes manual intervention and works perfectly with our linear motor sorting system to maintain high throughput with gentle parcel handling for every item.
Yes, the cross belt sorter is the best linear motor sorting system for handling a wide variety of packaging, including plastic bags and bubble mailers, ensuring gentle parcel handling.
The TR400-700 is optimized for a weight range of 0.03 kg up to 30 kg. Its precise control mechanism ensures gentle parcel handling even for the lightest items, making it an ideal linear motor sorting system for diverse e-commerce needs.
Cross belt is better for precision and small parcels, while narrow belt is better for higher speed and larger items.
Contact us today to get a custom layout design and competitive pricing for our high-performance Cross Belt Sorter.
