Engineered for premium logistics operations, this Cross Belt Sorter represents a benchmark in high-speed, high-precision sorting technology. With advanced control systems and robust mechanical design, it ensures reliable performance under demanding conditions.
It is widely adopted by leading e-commerce platforms and logistics providers seeking efficiency, accuracy, and long-term operational stability.
Share to :
| item | specification |
| Sorting Capacity（theoretical) | 9,000 – 1,000 parcels/hour |
| Sorting capacity(average) | 7,000 parcels/hour |
| Conveyor drive | 2.2kW Servo Motor |
| Speed | 1.2 – 1.5 m/s |
| Carrier pitch | 500 mm |
| Chute Width | 1100 mm |
| Scanning | 5-side |
| Parcel size(min) | 100 × 100 × 10 mm |
| Parcel size(max) | 500 × 400 × 400 mm |
| Parcel weight | 0.03 – 30 kg |
Up to 20,000 PPH sorting capacity, ideal for tier-1 courier hubs and massive e-commerce centers.
The active cross-belt ensures zero-impact discharge, protecting fragile electronic and luxury goods.
Wider discharge areas accommodate a larger variety of parcel types and improve collection efficiency.
Proven stable performance reduces downtime and maintenance costs.
1.Min: 100 × 100 × 10 mm
2.Max: 500 × 400 × 400 mm
3.Weight: 0.03 – 30 kg
Perfect for small and irregular parcels
1.Carrier pitch: 400 mm / 500 mm
2.Chute width: 700 mm / 1100 mm
3.Speed: 1.0 – 1.5 m/s
Adaptable to different layouts
1.3.7kW permanent magnet synchronous linear motor
2.One motor drives 60–70 carriers
3.Energy saving >40%
4.Constant speed after commissioning
Lower operating cost and energy consumption
Proven experience in logistics automation
Customized solutions based on your layout
Stable performance in real applications
Complete support: design, production, installation
Fast response for global customers
We can design a set of logistics transportation sorting system for you tailored to your specific facility dimensions and throughput requirements.
Watch how the system achieves high-speed and high-accuracy parcel sorting in real projects.
Used for sorting parcels by destination, route, or delivery zone.
We’ve compiled answers to some of the most frequently asked questions about selecting, installing and maintaining these systems in a warehouse or distribution center.

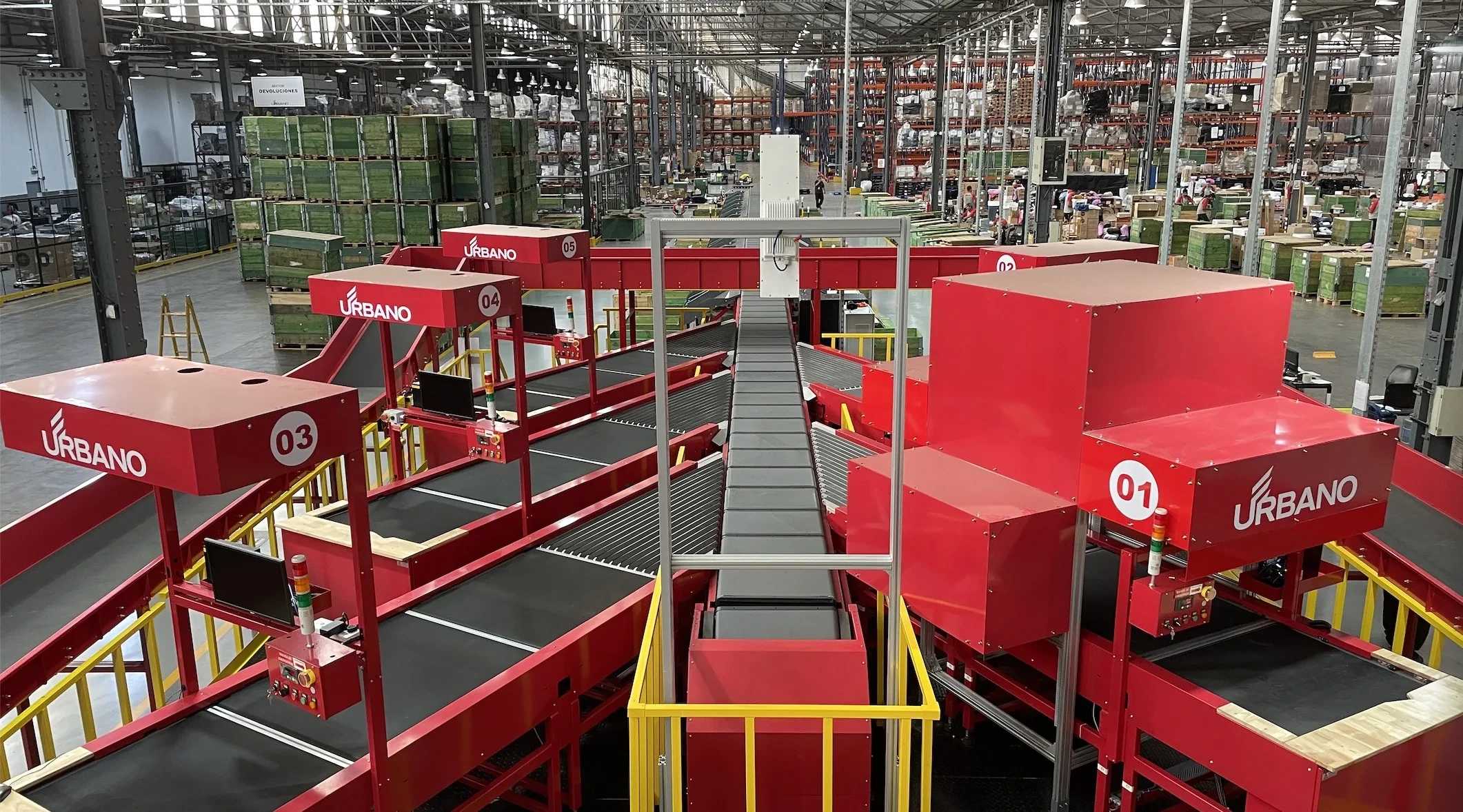

The TR500-1100 combines a linear motor sorting system with an extra-wide 1100mm chute. This allows the system to process larger parcels while maintaining the high standards of gentle parcel handling that Cross Belt technology is known for.
5-side scanning ensures that parcels are identified correctly regardless of orientation. When paired with our linear motor sorting system, it reduces sorting errors and manual re-touching, maximizing your 7,000 PPH average throughput.
Absolutely. The core design of our Cross Belt Sorter is centered on gentle parcel handling. The smooth, horizontal discharge avoids the impacts typical of mechanical pushers, making it safe for electronics, cosmetics, and glassware.
Cross belt is better for precision and small parcels, while narrow belt is better for higher speed and larger items.
Contact us today to get a custom layout design and competitive pricing for our high-performance Cross Belt Sorter.
