Custom Parcel Sorting Systems. Engineered for Real Operations.
Custom Parcel Sorting Systems. Engineered for Real Operations.

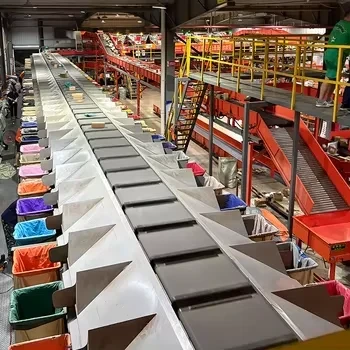

This Cross Belt Sorting System is engineered as a fully customizable solution tailored to project-specific requirements. From layout planning to system integration, every aspect can be optimized based on throughput targets, facility constraints, and operational workflows.
It is an ideal choice for logistics operators seeking a long-term, scalable, and intelligent sorting solution.
Share to :
| item | specification |
| Sorting Capacity（theoretical) | 12,000 – 13,000 parcels/hour |
| Sorting capacity(average) | 10,000 parcels/hour |
| Drive System | 3.7kW Permanent Magnet Linear Motor |
| Carrier ratio | 60–70 carriers per motor |
| Conveyor drive | 2.2kW Servo Motor |
| Speed | 1.0 – 1.5 m/s |
| Carrier pitch | 500 mm |
| Chute Width | 700 mm |
| Scanning | top scanning |
| Parcel size(min) | 100 × 100 × 10 mm |
| Parcel size(max) | 500 × 400 × 400 mm |
| Parcel weight | 0.03 – 30 kg |
Up to 20,000 PPH sorting capacity, ideal for tier-1 courier hubs and massive e-commerce centers.
The active cross-belt ensures zero-impact discharge, protecting fragile electronic and luxury goods.
Wider discharge areas accommodate a larger variety of parcel types and improve collection efficiency.
Proven stable performance reduces downtime and maintenance costs.
1.Min: 100 × 100 × 10 mm
2.Max: 500 × 400 × 400 mm
3.Weight: 0.03 – 30 kg
Perfect for small and irregular parcels
1.Carrier pitch: 400 mm / 500 mm
2.Chute width: 700 mm / 1100 mm
3.Speed: 1.0 – 1.5 m/s
Adaptable to different layouts
1.3.7kW permanent magnet synchronous linear motor
2.One motor drives 60–70 carriers
3.Energy saving >40%
4.Constant speed after commissioning
Lower operating cost and energy consumption
Proven experience in logistics automation
Customized solutions based on your layout
Stable performance in real applications
Complete support: design, production, installation
Fast response for global customers
We can design a set of logistics transportation sorting system for you tailored to your specific facility dimensions and throughput requirements.
Watch how the system achieves high-speed and high-accuracy parcel sorting in real projects.
Used for sorting parcels by destination, route, or delivery zone.
We’ve compiled answers to some of the most frequently asked questions about selecting, installing and maintaining these systems in a warehouse or distribution center.
The TR500-700 utilizes a linear motor sorting system that offers superior energy efficiency and lower maintenance compared to chain drives. Its 500mm carrier pitch provides better support for medium-sized parcels.
Unlike pushers or swivel wheels, our cross belt technology uses a motorized belt on each carrier to smoothly transition parcels to the chute, ensuring gentle parcel handling for fragile e-commerce goods.
Yes, the core value of our cross belt technology is gentle parcel handling. By avoiding the "shoving" motion of mechanical sorters, it ensures fragile items are sorted safely even at peak speeds.
Cross belt is better for precision and small parcels, while narrow belt is better for higher speed and larger items.
Contact us today to get a custom layout design and competitive pricing for our high-performance Cross Belt Sorter.
