Custom Parcel Sorting Systems. Engineered for Real Operations.
Custom Parcel Sorting Systems. Engineered for Real Operations.

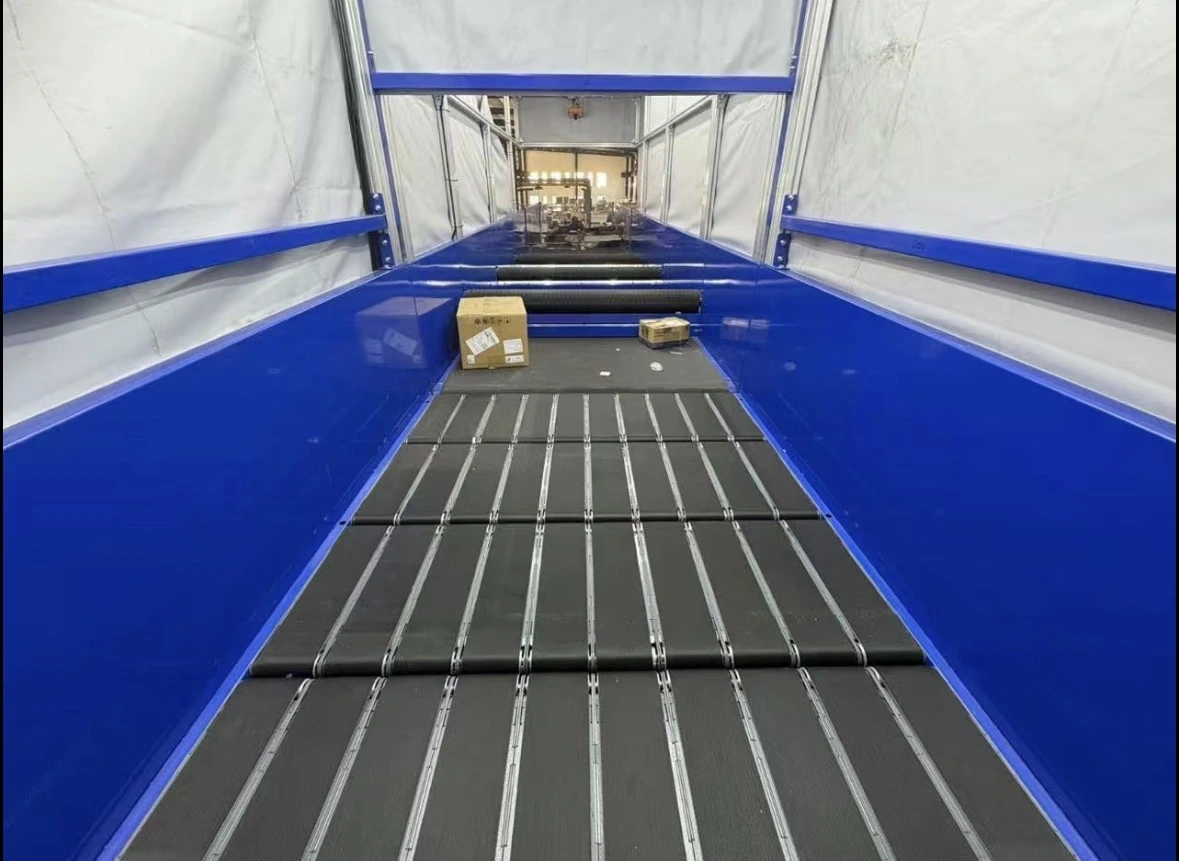

The Cross Belt Sorter can be integrated with an advanced Singulation System to form a complete automated parcel sorting solution. Incoming bulk parcels are first separated into a single-item flow, ensuring optimal spacing and alignment before entering the sorter.
This integrated approach significantly improves sorting accuracy, reduces congestion, and maximizes overall system efficiency.
Share to :
| item | specification |
| Sorting Capacity（theoretical) | 7,000 – 8,000 parcels/hour |
| Sorting capacity(average) | 6,500 parcels/hour |
| Conveyor drive | 2.2kW Servo Motor |
| Speed | 1.2 – 1.5 m/s |
| Carrier pitch | 450 mm |
| Chute Width | 500 mm |
| Scanning | 6-side |
| Parcel size(min) | 100 × 100 × 10 mm |
| Parcel size(max) | 500 × 400 × 400 mm |
| Parcel weight | 0.03 – 30 kg |
Up to 20,000 PPH sorting capacity, ideal for tier-1 courier hubs and massive e-commerce centers.
The active cross-belt ensures zero-impact discharge, protecting fragile electronic and luxury goods.
Wider discharge areas accommodate a larger variety of parcel types and improve collection efficiency.
Proven stable performance reduces downtime and maintenance costs.
1.Min: 100 × 100 × 10 mm
2.Max: 500 × 400 × 400 mm
3.Weight: 0.03 – 30 kg
Perfect for small and irregular parcels
1.Carrier pitch: 400 mm / 500 mm
2.Chute width: 700 mm / 1100 mm
3.Speed: 1.0 – 1.5 m/s
Adaptable to different layouts
1.3.7kW permanent magnet synchronous linear motor
2.One motor drives 60–70 carriers
3.Energy saving >40%
4.Constant speed after commissioning
Lower operating cost and energy consumption
Proven experience in logistics automation
Customized solutions based on your layout
Stable performance in real applications
Complete support: design, production, installation
Fast response for global customers
We can design a set of logistics transportation sorting system for you tailored to your specific facility dimensions and throughput requirements.
Watch how the system achieves high-speed and high-accuracy parcel sorting in real projects.
Used for sorting parcels by destination, route, or delivery zone.
We’ve compiled answers to some of the most frequently asked questions about selecting, installing and maintaining these systems in a warehouse or distribution center.
The TR5450-500 is specifically designed to work with automated singulators. It ensures that bulk-fed parcels are perfectly spaced before entering the linear motor sorting system, significantly increasing sorting accuracy.
Since this model handles a high frequency of parcels (up to 8,000 PPH), our gentle parcel handling technology ensures that even small or fragile items are transitioned smoothly without high-speed impacts.
The 450mm pitch offers a compact footprint, allowing for a higher density of carriers in a smaller space. This makes our linear motor sorting system ideal for facilities with limited floor space.
Cross belt is better for precision and small parcels, while narrow belt is better for higher speed and larger items.
Contact us today to get a custom layout design and competitive pricing for our high-performance Cross Belt Sorter.
