Custom Parcel Sorting Systems. Engineered for Real Operations.
Custom Parcel Sorting Systems. Engineered for Real Operations.

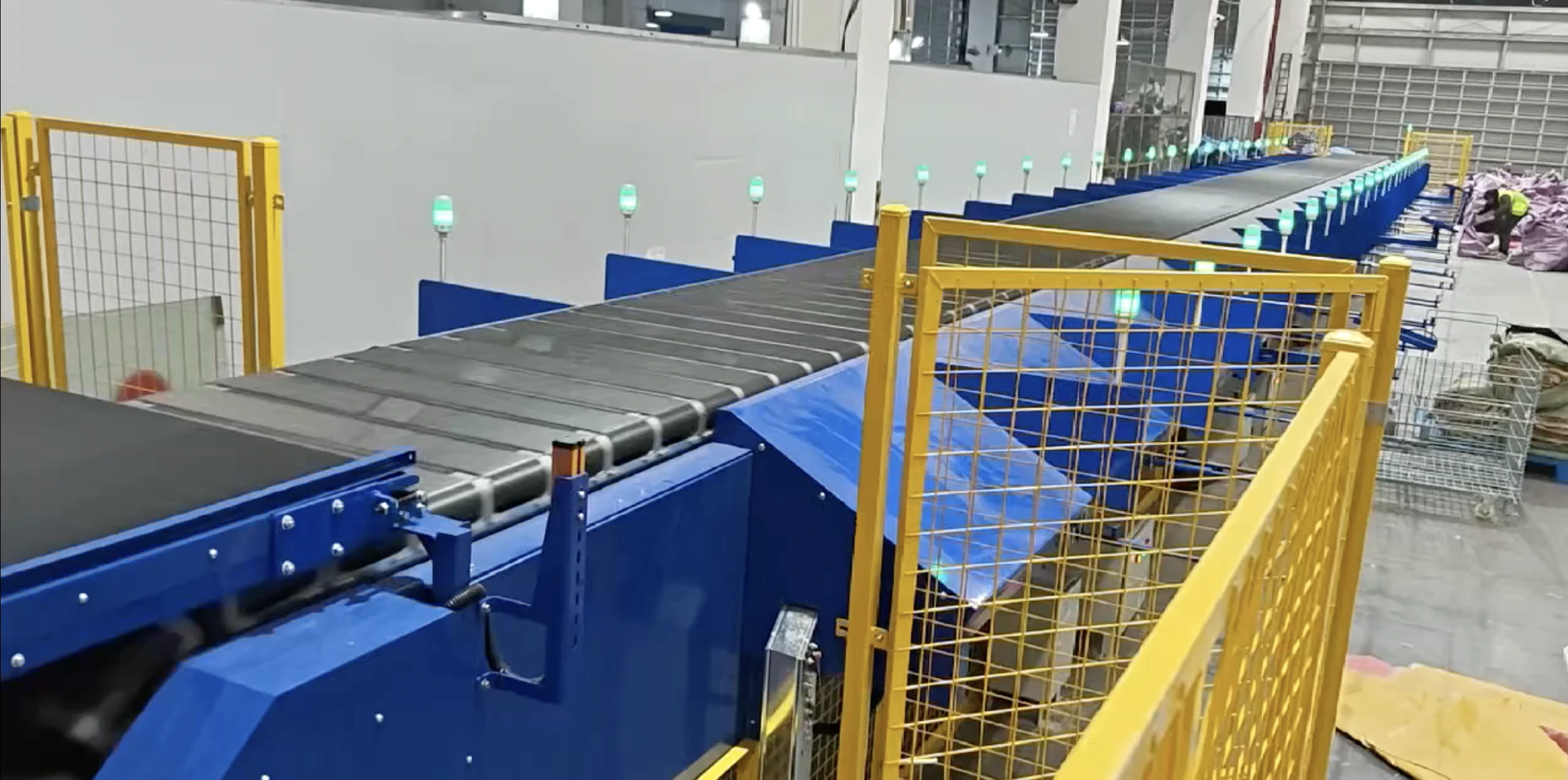

Built for high-throughput environments, this Narrow Belt Sorter delivers fast and precise parcel handling for large-scale distribution centers. With optimized mechanical structure and advanced control logic, it ensures smooth operation even under peak workloads.
It is an ideal choice for e-commerce hubs and courier facilities requiring high-speed, high-accuracy sorting performance.
Key Benefits
Share to :
| item | specification |
|---|---|
| Sorting capacity(theoretical) | 8,000 – 10,000 parcels/hour |
| Sorting capacity(average) | 8,000 parcels/hour |
| Speed | 1.5 – 2.0 m/s |
| Carrier pitch | 300 mm |
| Chute width | 760 mm |
| Scanning | 6-side |
| Drive system | 2.2kW Servo Motor |
| Parcel size(min) | 150 × 150 × 15 mm |
| Parcel size(max) | 1000 × 700 × 700 mm |
| Parcel weight | 0.03 – 50 kg |
Omnidirectional barcode reading ensures near 100% accuracy, even for irregularly placed parcels.
Ultra-narrow 760mm chute design maximizes the number of sorting destinations within a limited area.
3-side / 5-side scanning, Ensure accurate parcel identification
Sorting capacity: 7,000 – 9,000 parcels/hour , Ensure stable operation during peak seasons
1.Min: 100 × 100 × 10 mm
2.Max: 500 × 400 × 400 mm
3.Weight: 0.03 – 30 kg
Perfect for small and irregular parcels
1.Carrier pitch: 400 mm / 500 mm
2.Chute width: 700 mm / 1100 mm
3.Speed: 1.0 – 1.5 m/s
Adaptable to different layouts
1.3.7kW permanent magnet synchronous linear motor
2.One motor drives 60–70 carriers
3.Energy saving >40%
4.Constant speed after commissioning
Lower operating cost and energy consumption
Proven experience in logistics automation
Customized solutions based on your layout
Stable performance in real applications
Complete support: design, production, installation
Fast response for global customers
We can design a set of logistics transportation sorting system for you tailored to your specific facility dimensions and throughput requirements.
Watch how the system achieves high-speed and high-accuracy parcel sorting in real projects.
Used for sorting parcels by destination, route, or delivery zone.
We’ve compiled answers to some of the most frequently asked questions about selecting, installing and maintaining these systems in a warehouse or distribution center.
A wider 300mm pitch accommodates a broader range of parcel sizes while maintaining a high-density, fast-paced sorting flow at 8,000 PPH.
Yes, the narrow belt design is ideal for small parcels, cartons, and even irregular poly bags.
It guarantees omnidirectional barcode capture, eliminating the need for manual parcel alignment and reducing error rates to near zero.
Cross belt is better for precision and small parcels, while narrow belt is better for higher speed and larger items.
Contact us today to get a custom layout design and competitive pricing for the Narrow belt sorter TR300-760.
What you will get in 24 hours:
A customized sorting system layout based on your facility dimensions.
Throughput verification for 10000 PPH parcel sorting requirements.
Detailed ROI analysis for automatic sorting systems.
